Why Is My Coolant Reservoir Leaking? Common Causes & What to Check

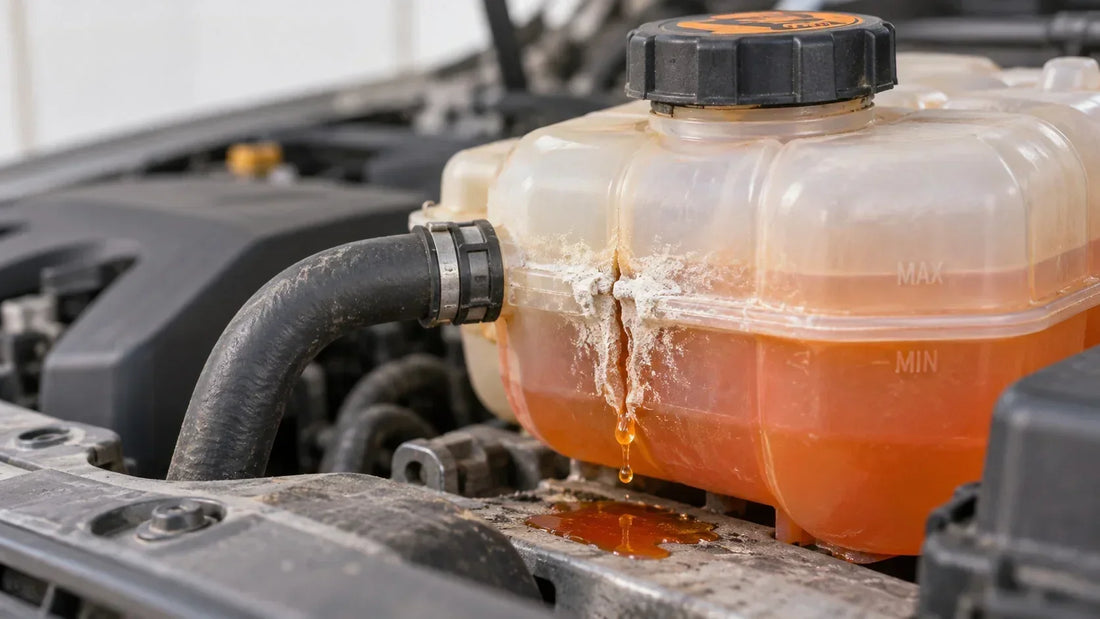

Close-up of a coolant expansion tank leak

Have you noticed brightly colored fluid pooling or dripping under your vehicle? Do you see dried white residue or stains in the engine bay, or notice a sweet coolant smell? Does the dashboard frequently warn you that the coolant level is low?

If so, it may be time to inspect the coolant reservoir for leaks.

Ignoring the problem can lead to more expensive repairs over time. A leaking coolant reservoir can slowly lower the coolant level and allow air into the cooling system. If the leak continues, the engine may overheat and other cooling-system components may be affected.

If you notice any of the symptoms above, the first step is to find the exact source of the leak.

A cracked coolant reservoir is one of the most common causes. However, loose hose connections, damaged fittings, a faulty reservoir cap, or excessive cooling-system pressure can cause similar symptoms.

What Causes a Coolant Reservoir to Leak?

1. Cracked Coolant Reservoir

Many coolant reservoirs are made from molded plastic.

Repeated heating and cooling cycles can weaken the plastic over time, making it brittle and more likely to crack in high-stress areas.Common crack locations include:

  • Molded seams

  • Mounting points

  • Hose connections

  • Reservoir corners

  • The bottom of the tank

  • The filler neck area

Some cracks may be extremely small when the engine is cold. Once the engine warms up and pressure builds inside the cooling system, the crack may expand slightly and allow coolant to escape.

A cracked coolant reservoir may also leave dried coolant residue or visible staining around the damaged area.

2. Leaks at Hose Connections

Sometimes the reservoir appears to be leaking when the actual source is one of the hose connections.

Check for:

  • Loose hose clamps

  • Aged or cracked hoses

  • Damaged hose ends

  • Cracked plastic fittings

  • Incorrectly installed hoses

If coolant is mainly concentrated around a connection point, inspect the hose and fitting carefully before replacing the reservoir.

If you notice a coolant tank leaking near a connection, check the hose, clamp, fitting, and reservoir for damage.

3. Damaged Reservoir Cap

Some vehicles use a pressurized coolant reservoir, which means the reservoir cap helps regulate cooling-system pressure.

A damaged seal or an incorrect cap can allow coolant or vapor to leak around the cap.

However, coolant around the cap does not always mean the cap itself is defective.

Excessive cooling-system pressure can also force coolant past the cap or its seal.

4. Excessive Cooling-System Pressure

In some cases, a reservoir leak is only a symptom of another cooling-system problem.

If system pressure rises above normal operating levels, coolant may escape through:

  • The reservoir cap

  • Weak plastic seams

  • Hose connections

  • Previously unnoticed cracks

If a new reservoir starts leaking again soon after installation, replacing it again may not fix the issue. Check the cooling system for other problems that could be causing excessive pressure.

5. Sensor or Seal Leaks

Some coolant reservoirs are equipped with a coolant-level sensor.

Coolant can leak from a damaged sensor seal, O-ring, or mounting area even when the reservoir itself has no cracks.

Inspect the sensor area for:

  • Moisture

  • Dried coolant residue

  • Damaged seals

  • Loose or poorly seated components

6. Installation or Impact Damage

A coolant reservoir can also be damaged during installation or by an impact inside the engine bay.

Possible causes include:

  • Over-tightened mounting bolts

  • Excessive force applied to a hose fitting during installation

  • Incorrect reservoir positioning

  • Broken mounting tabs

  • Collision or engine-bay impact damage

Any of these issues can place additional stress on the plastic reservoir and lead to cracking or leakage.

How to Find the Actual Source of a Coolant Leak

Step 1: Let the Engine Cool Completely

Never open a pressurized cooling system while the engine is hot.

Hot coolant can cause serious burns.

Allow the engine and cooling system to cool completely before checking the reservoir cap, hoses, or coolant level.

Step 2: Inspect the Reservoir Body

Carefully inspect:

  • Side walls

  • Molded seams

  • Bottom surface

  • Mounting tabs

  • Corners

  • Filler neck area

A flashlight can help you locate small cracks that may otherwise be difficult to see.

Step 3: Inspect the Hose Connections

Check for:

  • Moisture around hose clamps

  • Cracked hoses

  • Damaged plastic fittings

  • Loose connections

A leak around a hose connection should be diagnosed before assuming the reservoir needs to be replaced.

Step 4: Inspect the Reservoir Cap

Look for coolant residue around the cap and filler neck.

Also inspect the cap seal for visible damage, hardening, or deformation.

Step 5: Check Other Cooling-System Components

If you're wondering why is my coolant reservoir leaking, the leak may actually be coming from another part of the cooling system.

Possible sources include:

Coolant can travel along nearby components before collecting around or underneath the reservoir.

How Can You Tell a Reservoir Leak From Other Cooling-System Leaks?

The location of the coolant can provide useful clues:

  • Around a reservoir seam: possible cracked reservoir

  • Around a hose connection: possible hose, clamp, or fitting problem

  • Around the reservoir cap: possible cap, seal, or pressure issue

  • Under the reservoir: possible lower crack or nearby hose leak

  • At the front of the engine: possible water pump, hose, or another cooling-system component

  • Near the radiator: possible radiator or radiator hose leak

This is only a general diagnostic guide. Cooling-system layouts vary significantly between vehicles.

Can You Drive With a Leaking Coolant Reservoir?

Do not ignore a coolant leak. Even a small leak can slowly lower the coolant level and may eventually lead to:

  • Engine overheating

  • Air entering the cooling system

  • Reduced cooling-system performance

  • Additional engine or cooling-system damage

If the temperature gauge rises too high or a low-coolant warning appears, have the vehicle inspected as soon as possible.

Can a Cracked Coolant Reservoir Be Repaired?

Whether a coolant reservoir can be repaired depends on:

  • Reservoir material

  • Crack location

  • Cooling-system pressure

  • Vehicle design

A temporary repair may slow the leak, but it may not last.

If the reservoir has large cracks, broken fittings, severe warping, or several damaged areas, replacing it is usually the more reliable choice.

When Should You Replace the Coolant Reservoir?

If the leak has been confirmed to come from the reservoir itself, replacement may be appropriate when:

  • The reservoir body has visible cracks

  • A molded plastic hose fitting is broken

  • A mounting point is damaged

  • The reservoir is severely warped or deformed

  • The reservoir continues to leak after the hoses and cap have been checked

If the coolant reservoir is losing coolant repeatedly, identifying the actual leak source before replacing parts can help avoid unnecessary repairs.

How to Choose the Correct Replacement Coolant Reservoir

Before ordering a replacement reservoir, verify:

You can also confirm fitment by searching your vehicle year, make, and model before ordering.

  • Vehicle year

  • Make

  • Model

  • Engine

  • OE / reference part number

  • Overall reservoir shape

  • Mounting-point locations

  • Hose connection positions

  • Sensor openings

  • Reservoir cap design

Reservoirs that look similar may still differ in mounting points, fittings, sensors, or internal design.

The part number proves especially useful when several reservoir designs appeared on similar vehicles.

Always compare the replacement part with the original reservoir before installation.

What Should You Check After Replacing the Coolant Reservoir?

After installation:

  1. Make sure all hoses and fittings are fully seated.

  2. Make sure you position the clamps correctly.

  3. Refill the system with the coolant specified for the vehicle.

  4. If required, bleed the cooling system according to the vehicle manufacturer's service procedure.

  5. Inspect the reservoir and all connection points for leaks.

  6. Recheck the coolant level after the engine has completely cooled.

Cooling-system bleeding procedures vary significantly between vehicles, so always follow the procedure recommended for the specific vehicle.


FAQ

Why is my coolant reservoir leaking?

Common causes include a cracked coolant reservoir, damaged hose connections, a faulty reservoir cap or seal, leaking sensor openings, installation damage, or excessive cooling-system pressure.

Why does my coolant reservoir keep losing coolant?

A coolant reservoir losing coolant may indicate a leak in the reservoir itself, but coolant may also be escaping from a hose, radiator, water pump, thermostat housing, or another cooling-system component.

Can a cracked coolant reservoir cause overheating?

Yes. If a cracked coolant reservoir allows enough coolant to escape, the cooling system may eventually operate with insufficient coolant, which can contribute to overheating.

How can I tell if my coolant tank is leaking?

Look for moisture, dried coolant residue, visible cracks, wet hose connections, coolant around the cap, or coolant collecting underneath the tank.

A coolant tank leaking from a very small crack may only become obvious when the cooling system is hot and pressurized.

Is a Coolant Reservoir the Same as an Overflow Tank?

The terms are often used interchangeably in everyday automotive language, but the actual cooling-system design can vary by vehicle.

Some vehicles use a non-pressurized overflow or recovery tank, while others use a pressurized expansion reservoir as part of the main cooling circuit.

Always identify the cooling-system design used on the specific vehicle before diagnosing or replacing the reservoir.
