Specification:

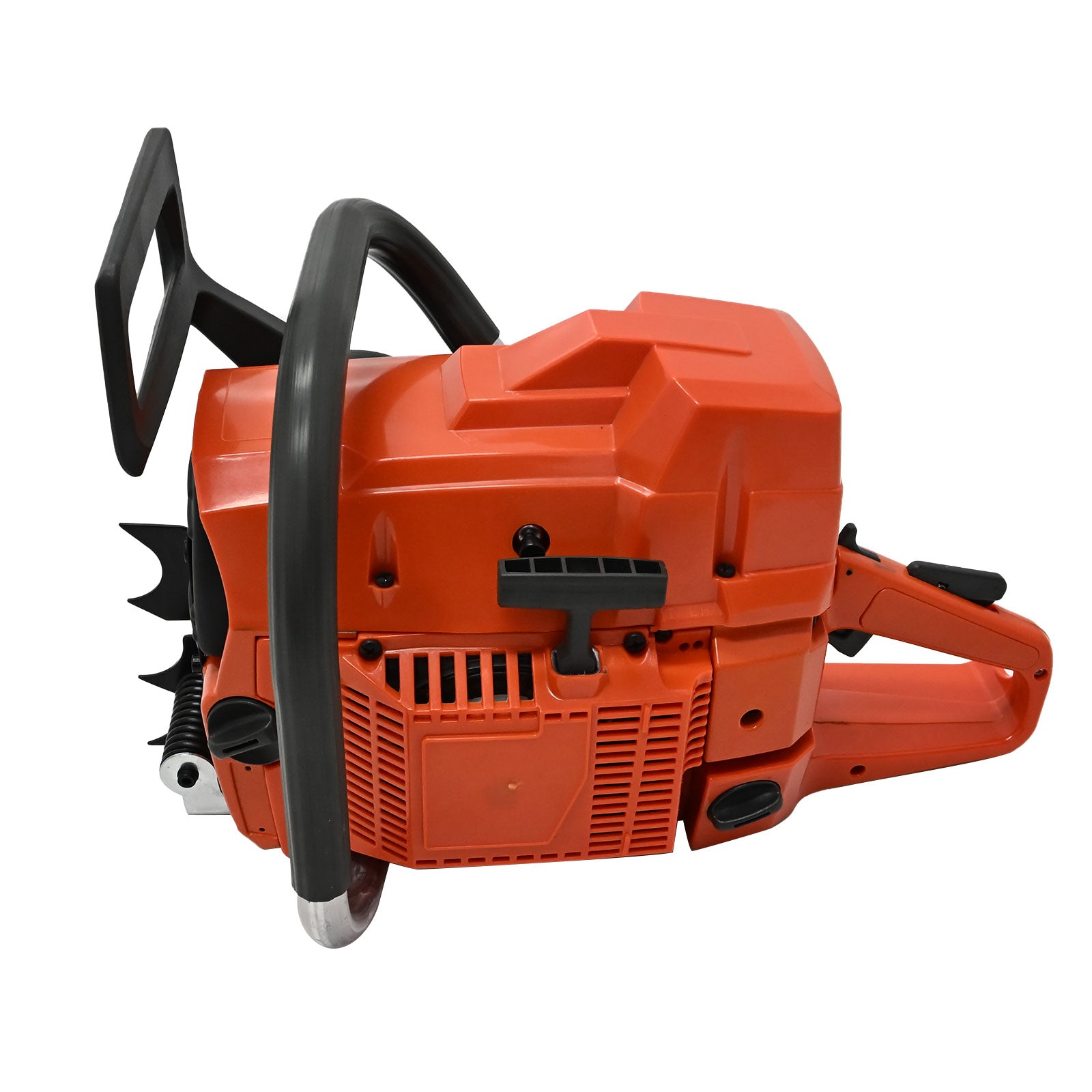

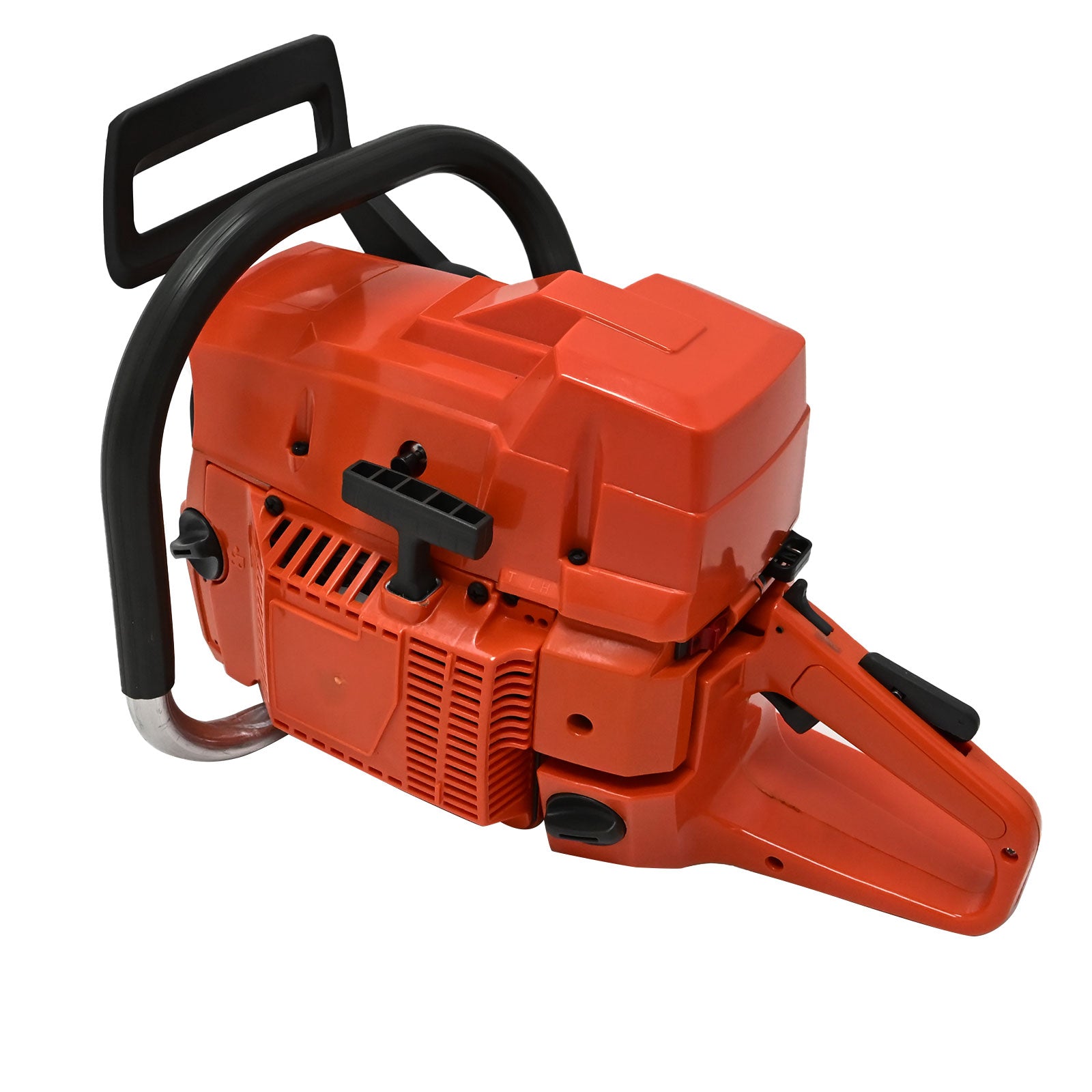

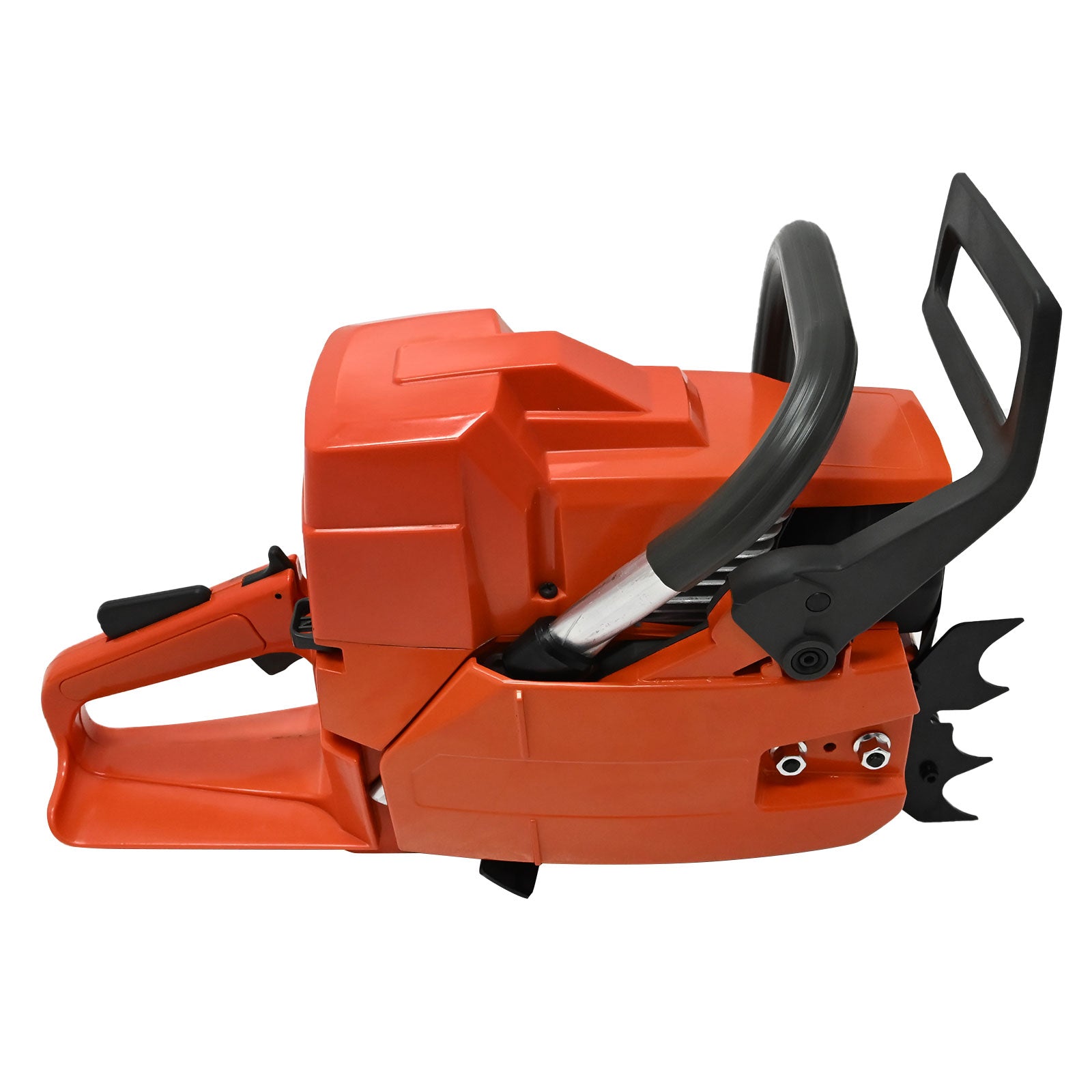

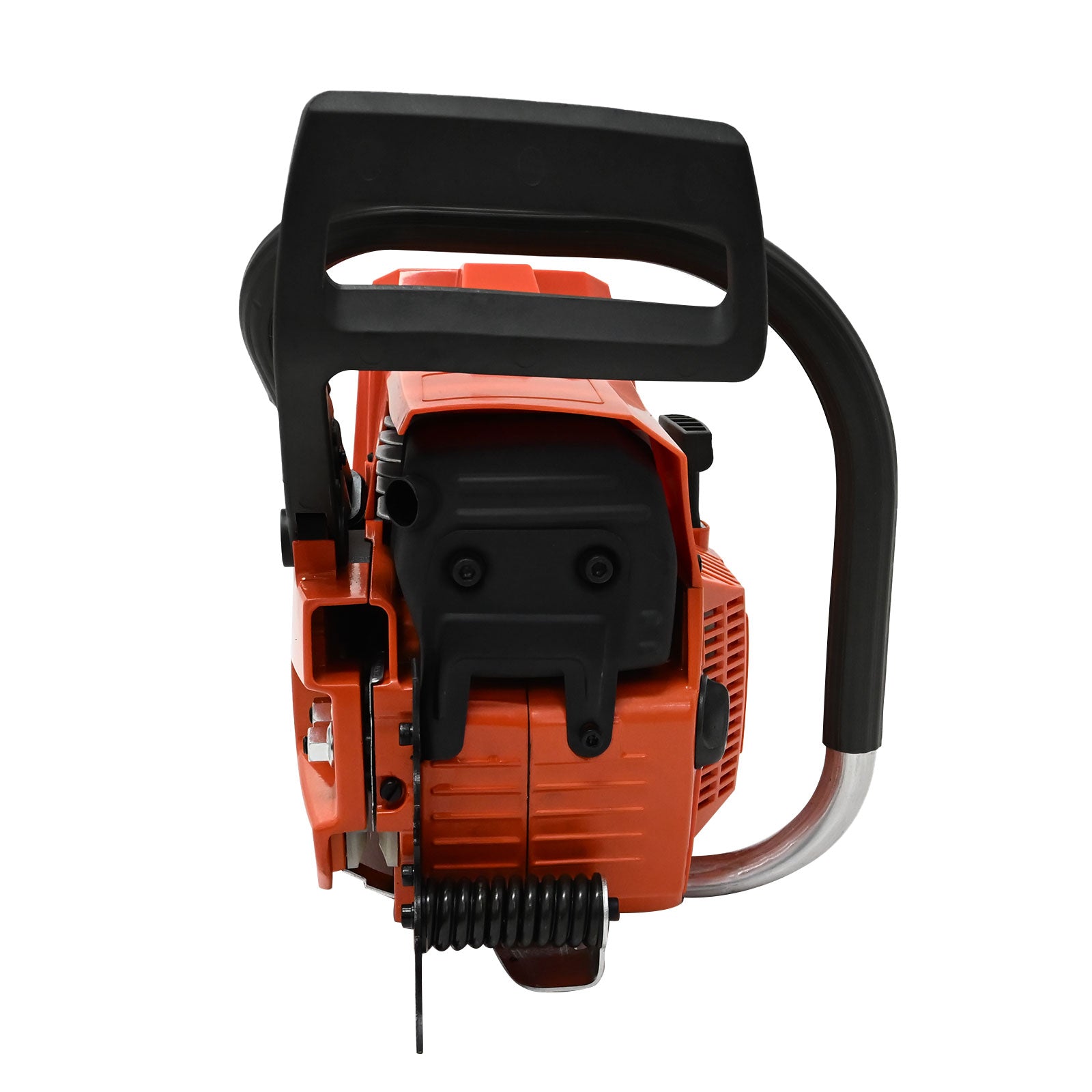

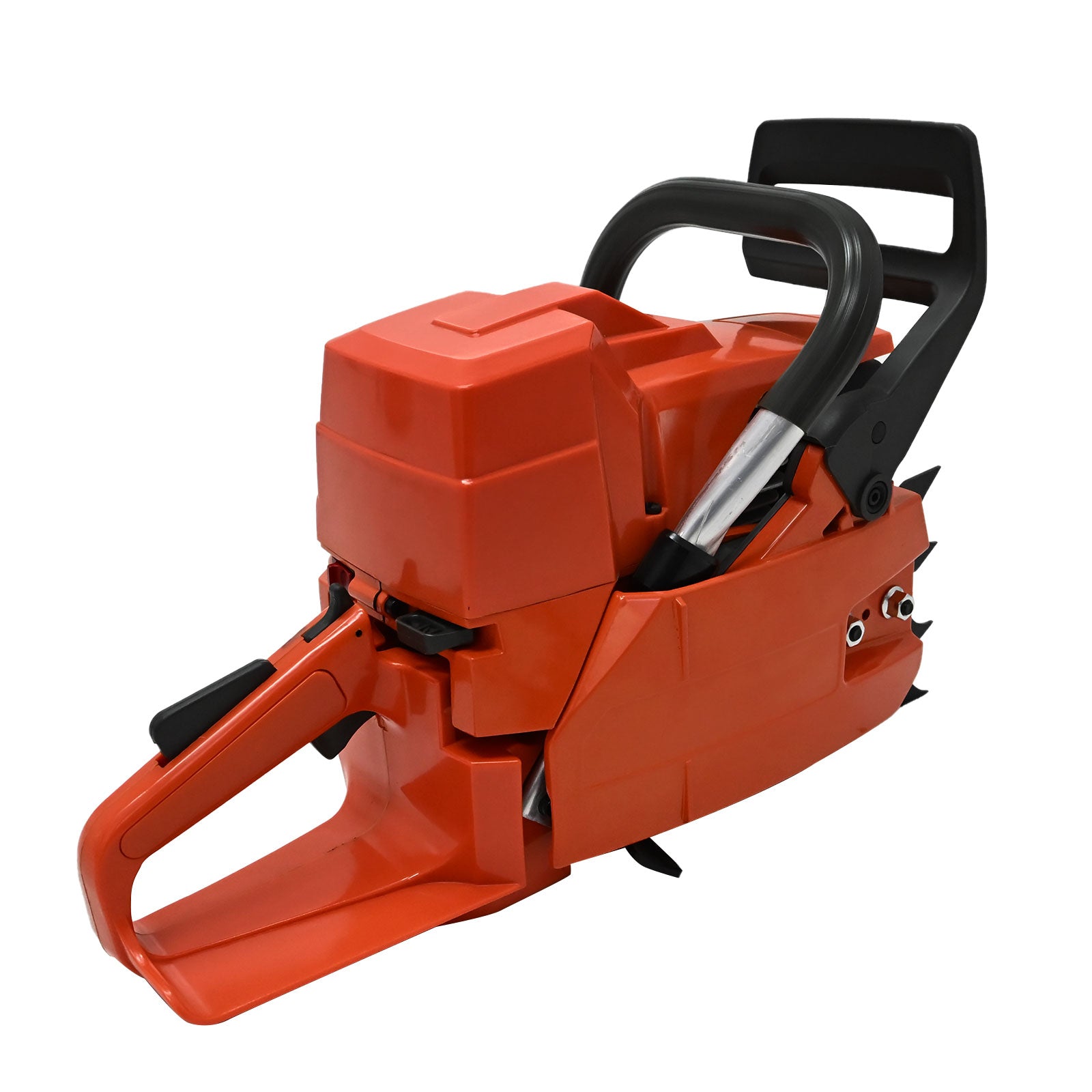

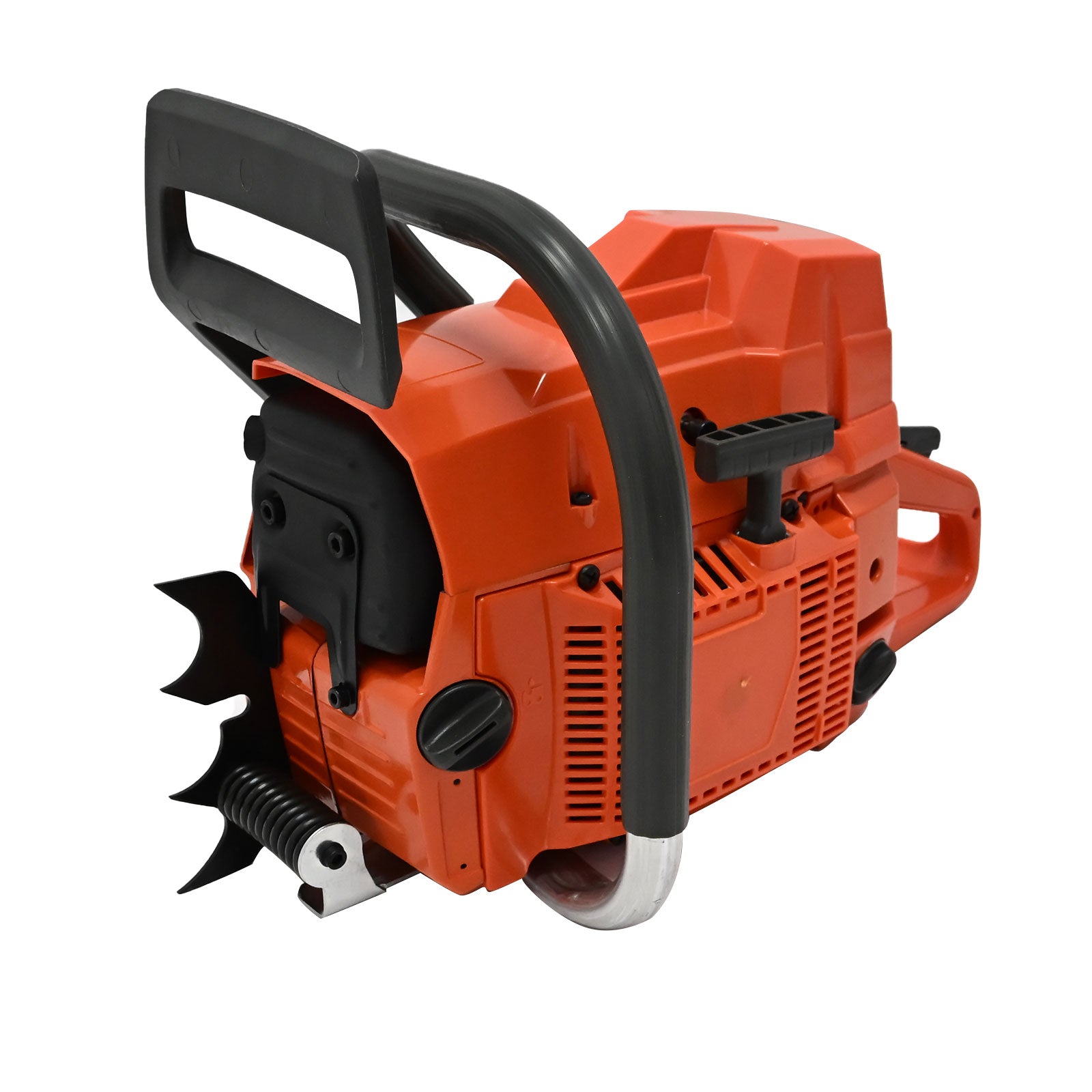

Product Name: Top Handle Chainsaw Power Head
Material: Iron/Aluminum/Plastic/Magnesium Alloy
MPN: For Husqvarna 288
Model Fitment: All Parts Compatible With Husqvarna 288
Technical Specifications:
Chainsaw Type: Soillar single cylinder 2 stroke engine
Net Weight: Without bar and chain 7.7kgs
Cylinder Displacement: 87cc
Power Output: 4.2KW
Idle Speed: 2,800 rpm
Maximum Power Speed: 11,500 rpm
Cylinder Bore: 54 mm
Piston Stroke: 38 mm
Genuine-grade Magnesium Alloy Material Crankcase
Fuel System:
Type of Oil Pump: Automatic
Fuel Type: stroke 25:1 (25 parts of unleaded fuel mixed with 1 part of 2-stroke oil)
Fuel Tank Volume: 900 ml (30.43 oz. fl.)
Chain Oil Tank Capacity: 500 ml (16.91 oz. fl.)
Cutting Accessories (Optional):
Guide Bar: 20", 25", 28", 32"
Specifications (Pictch, Gauge): 3/8", . 058"(1.5mm)
Chain Sprocket: 3/8", 7T
*Chain Lubrication Oil Recommendation:
SAE#10W-30 (general situation);
SAE#10W-20 (for low temperature regions);
SAE#10W-40 (for high temperature regions).
Package Included:

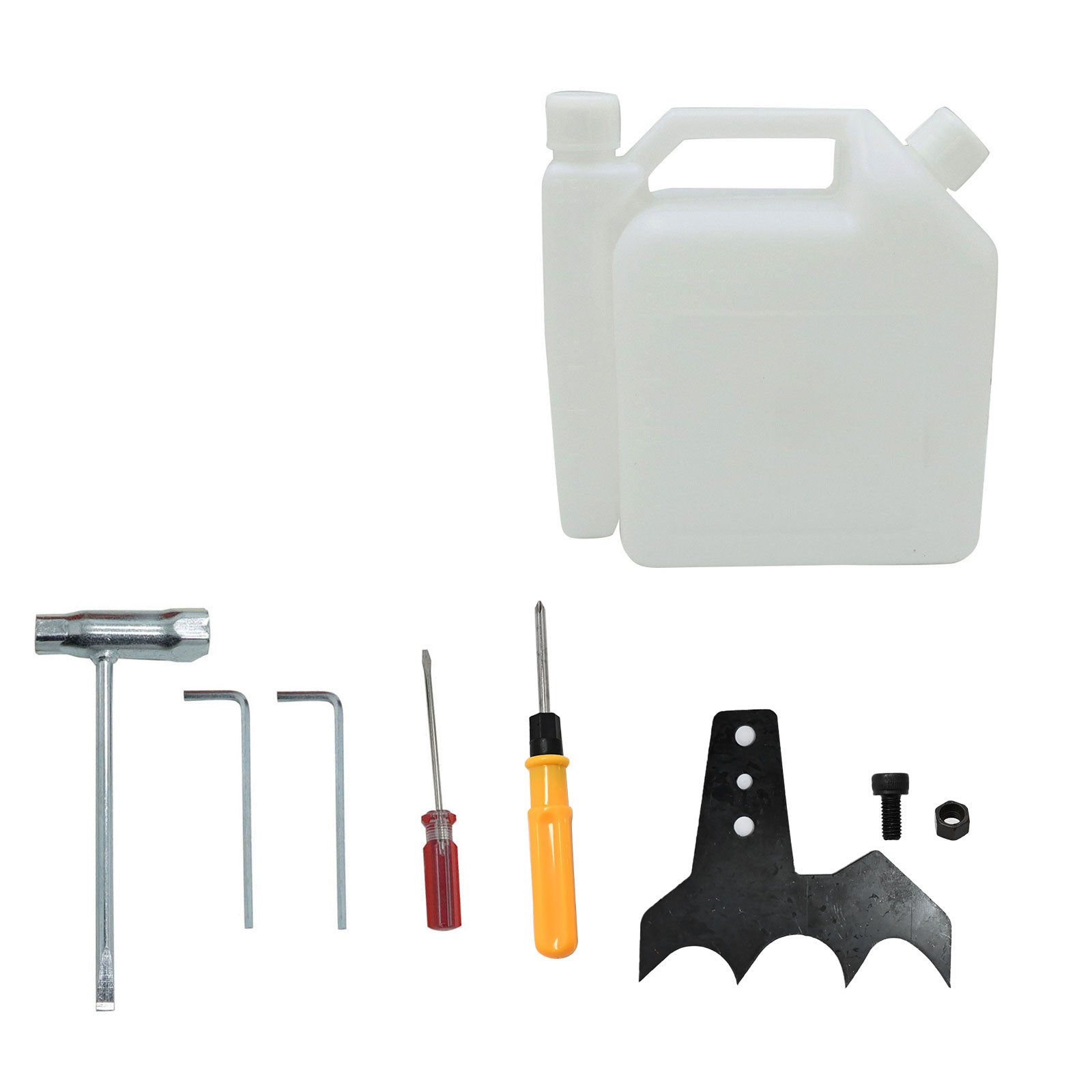

1X Chainsaw Power Head With Kit As Picture Shows
About This Item:
Warranty: 5 Years
100% Brand New and High Quality.
Fast & Free Shipping From KY or CA
