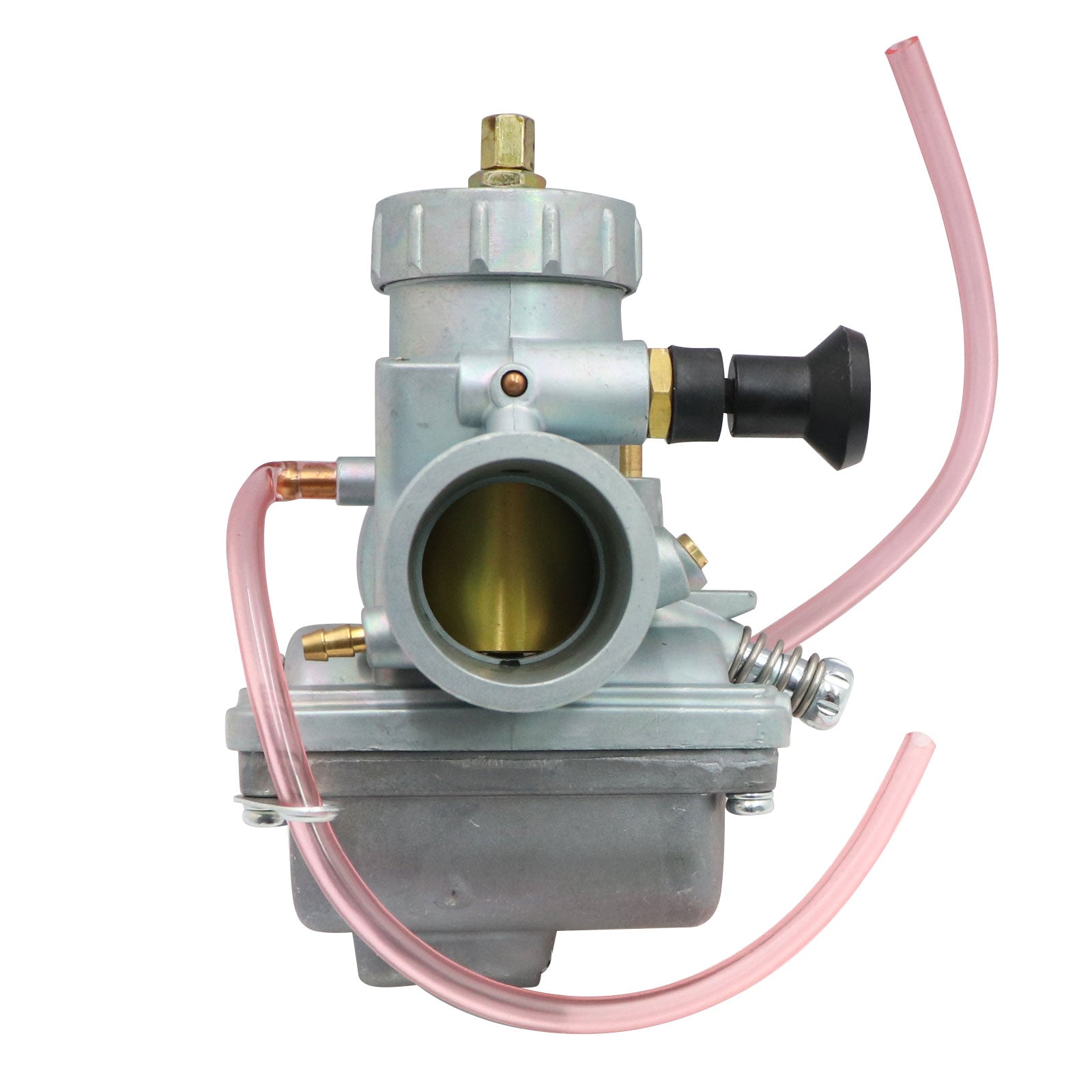

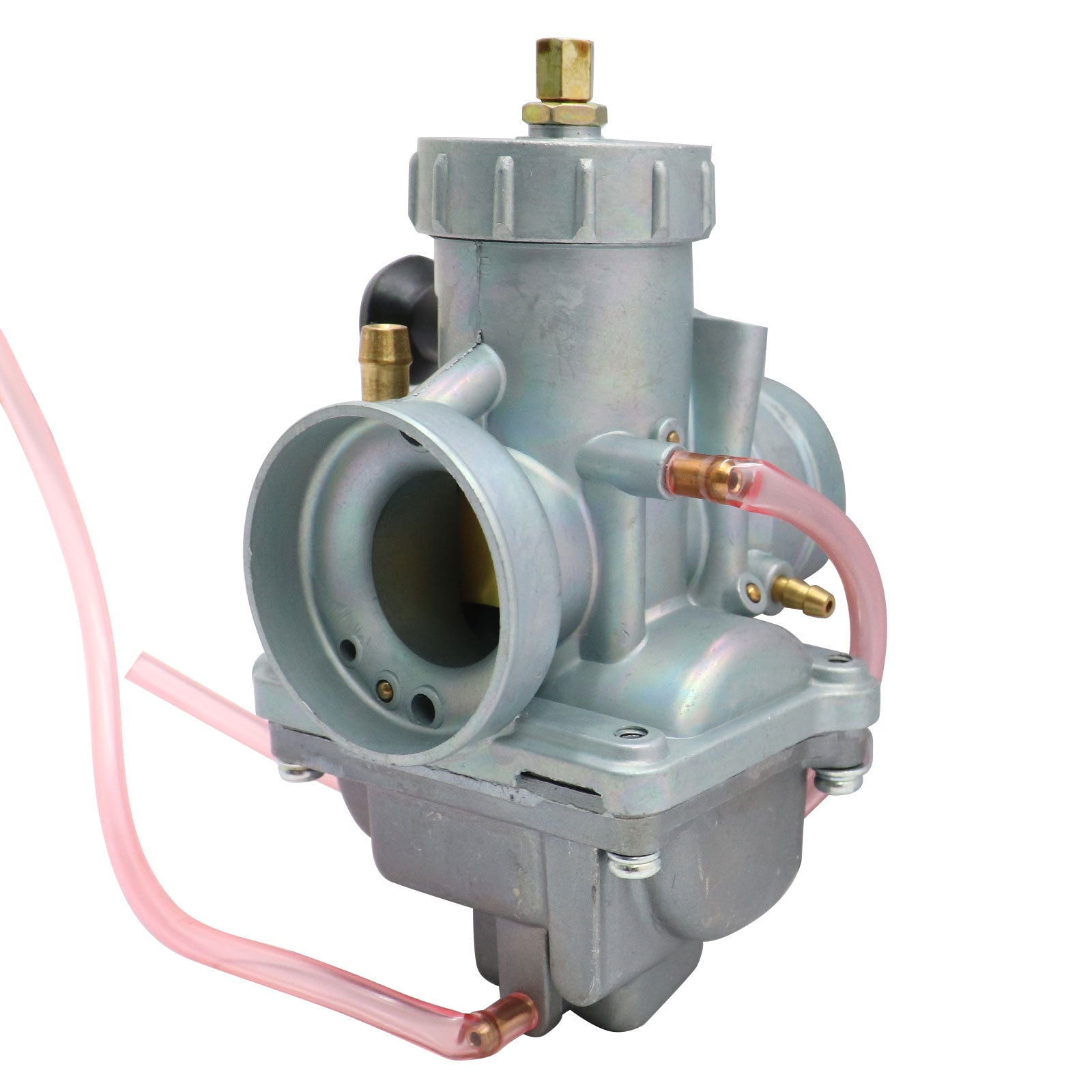

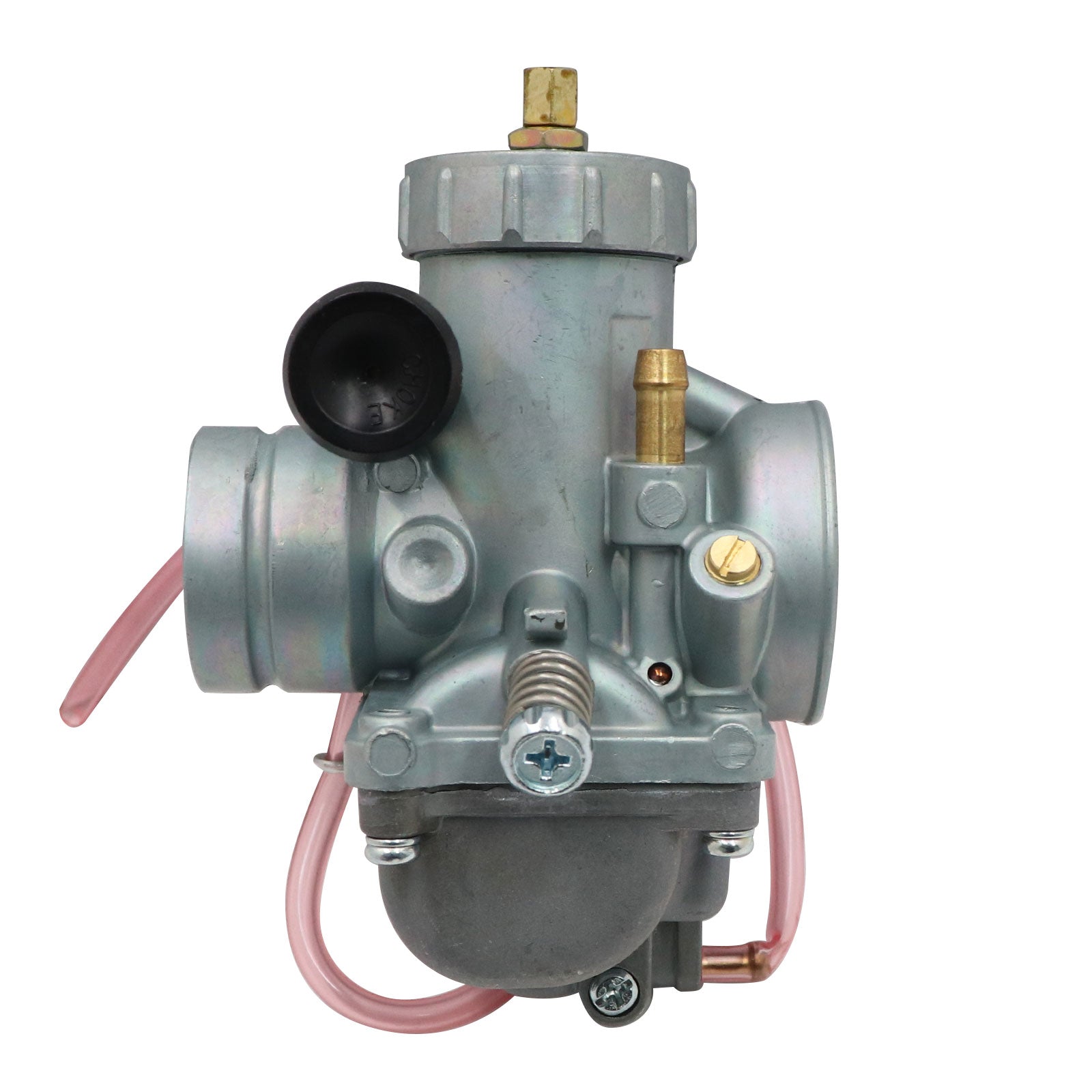

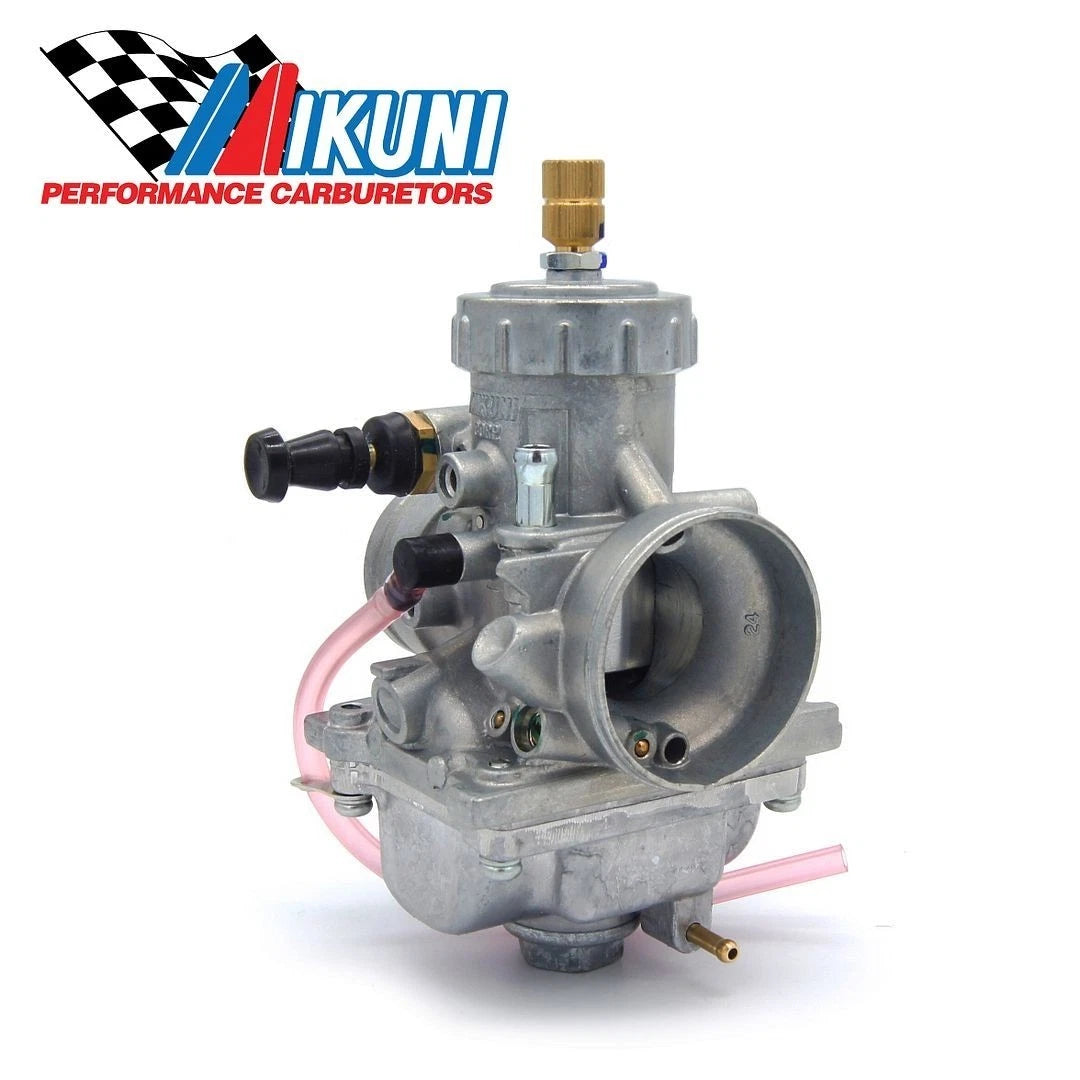

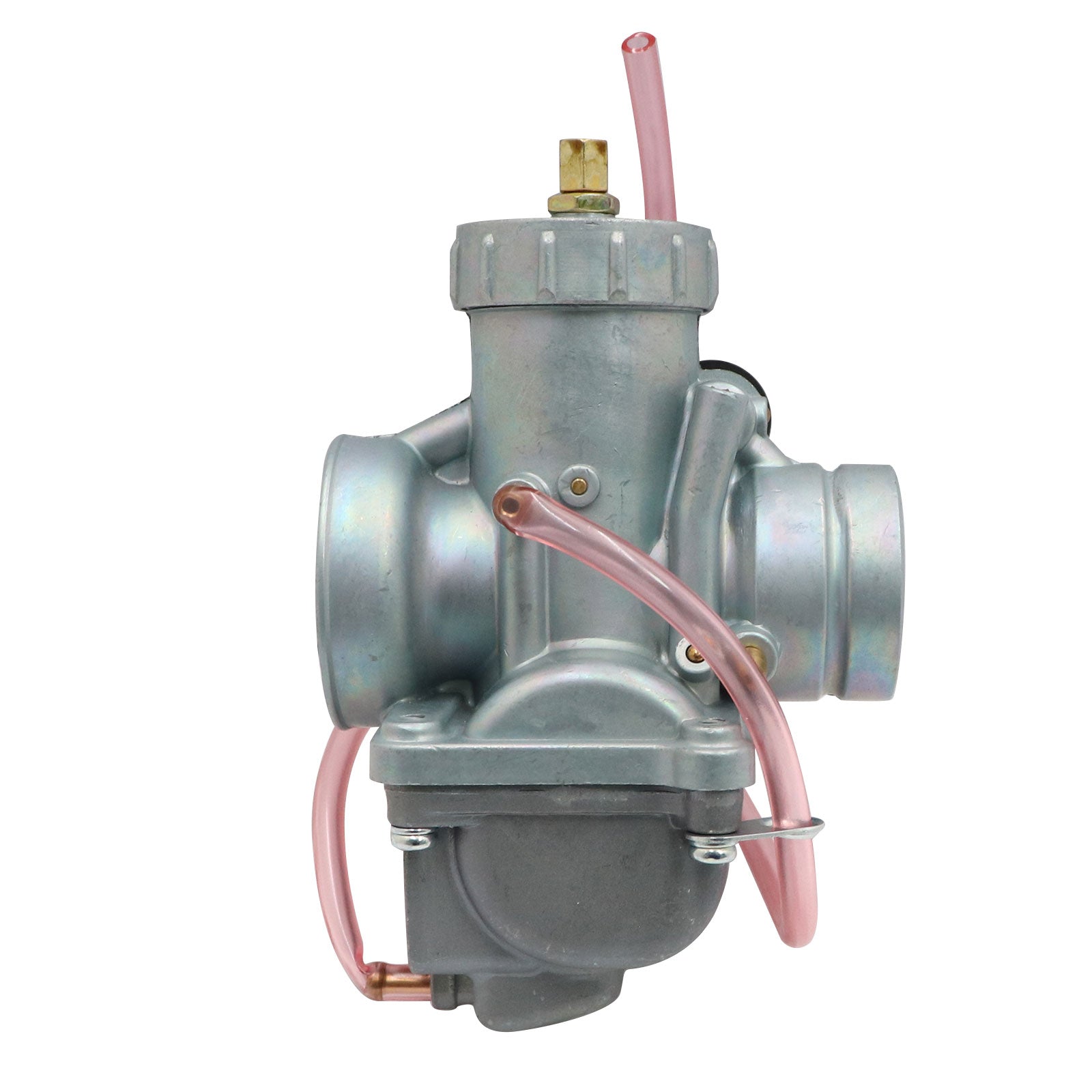

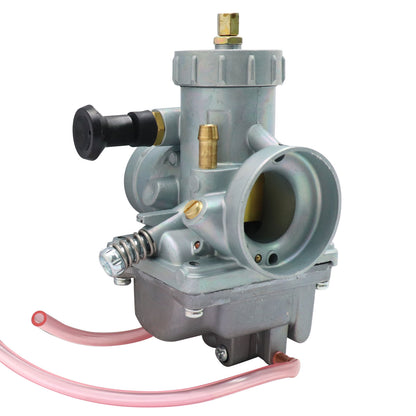

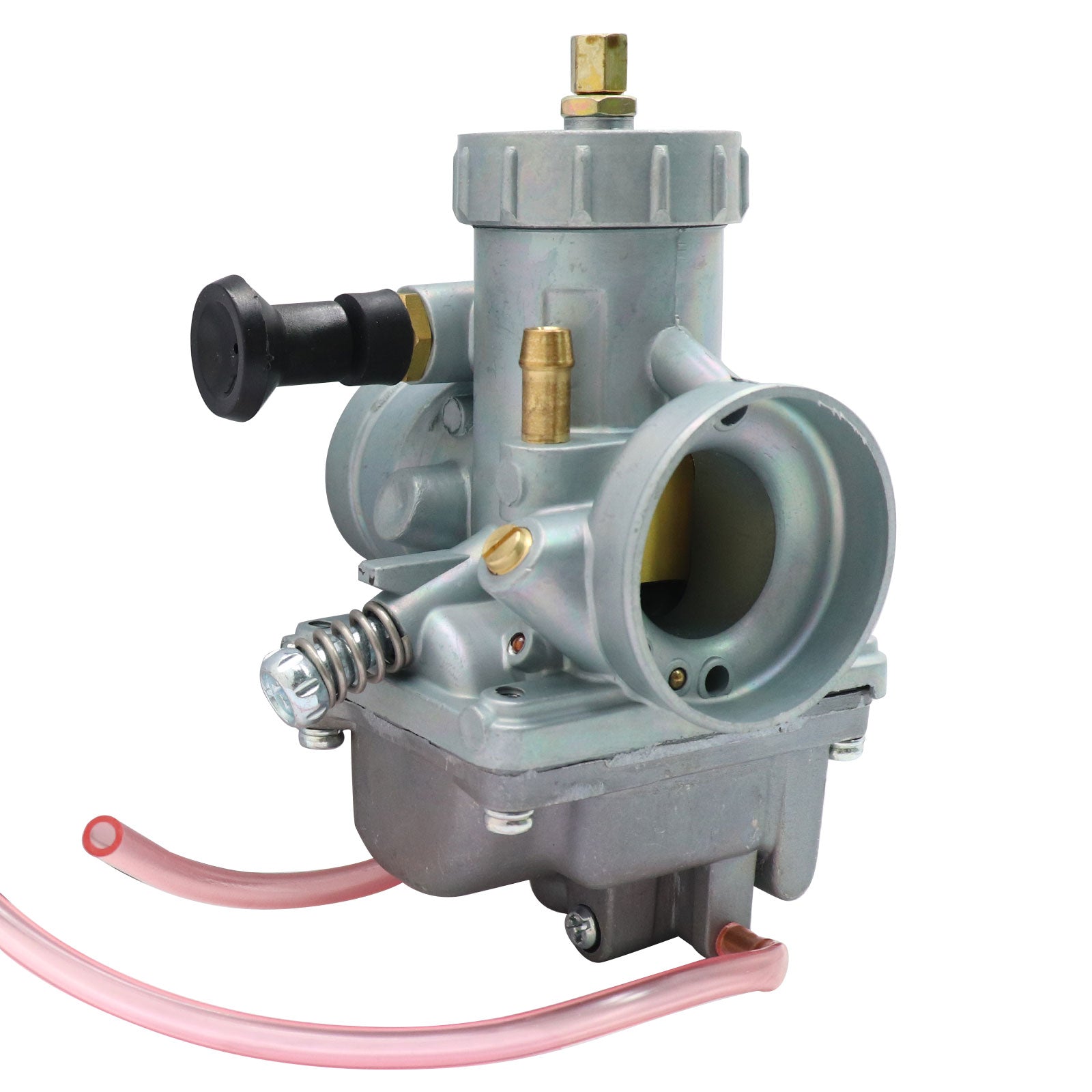

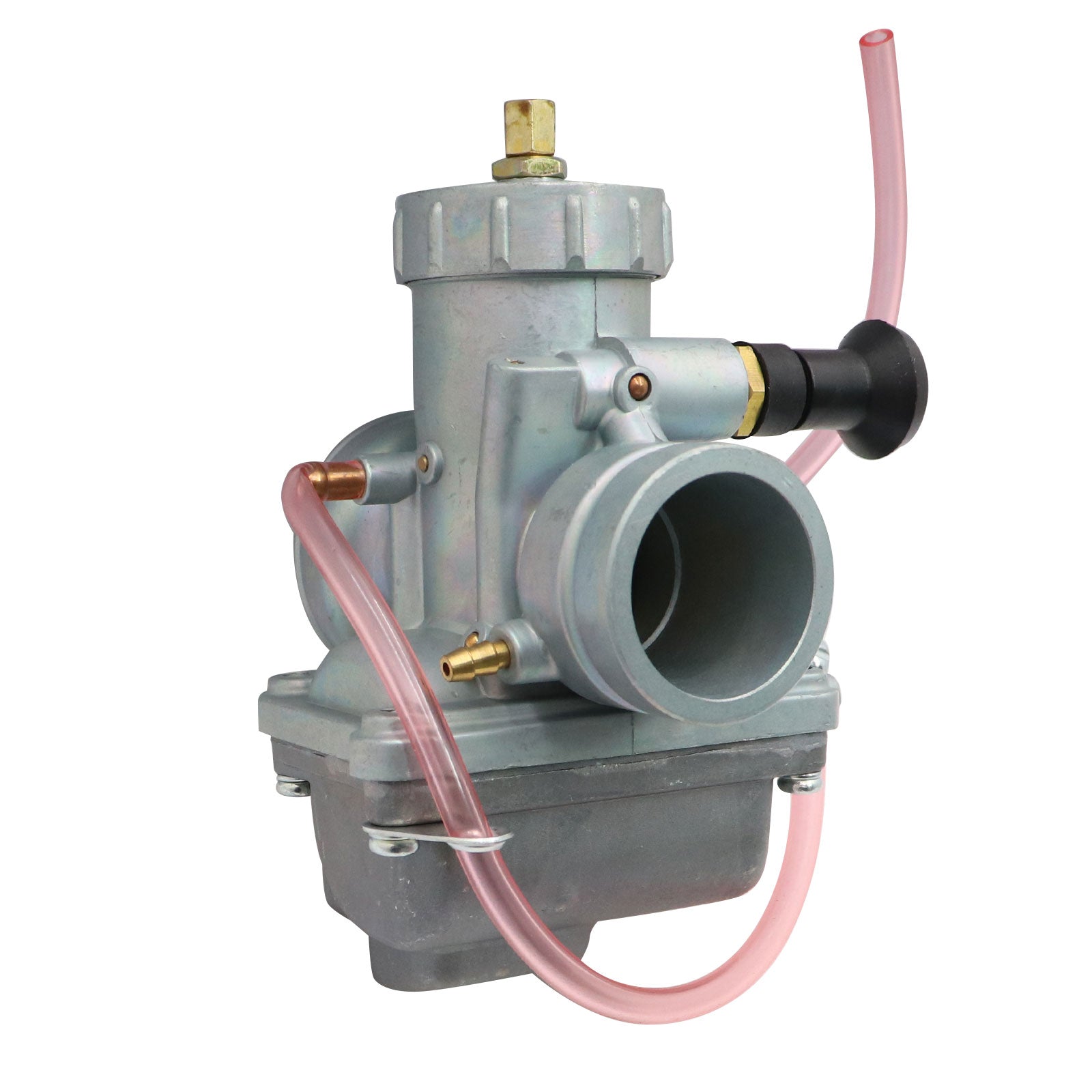

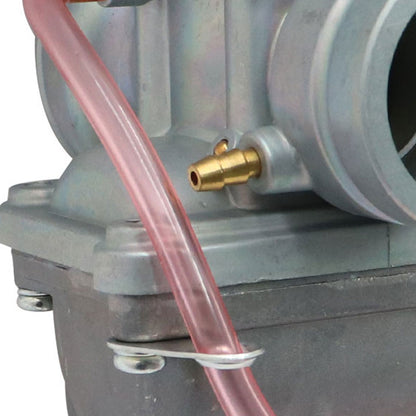

Soillar For Mikuni VM24 vm24-512 24mm Carburetor High Performance round slide Carb
Specification:
Fitment Type: Direct Replacement
Material: Aluminium
Manufacturer Part Number: VM24-512 Honda suzuki kawasaki yamaha
OE/OEM Part Number: VM24-512
Superseded Part Number: VM24-512
Features:
Feature 1: 100% Perfect Fitment
Feature 2: High Quality And High Performance, It is Constructed From Robust, Premium Materials
Feature 3: Improves Throttle Responsiveness, Controls The Engine Speed.
Feature 4: More Power Resolves Common Power Deficiencies
Feature 5: Air And Fuel Mixture is Perfectly Done, Helps the fuel to burn smoothly
Fit Models:
Mikuni VM24 vm24-512 24mm Carburetor High Performance round slide Carb
Jetting Specifications
Carb size...............VM24 - 24mm
Main Jet.................VM4/042 - #210
Pilot jet...................#40
Needle jet..............#864 N-8
Jet Needle.............#5i14
Throttle cutaway....#832-27043 1.5
Air Jet.....................none
Needle Valve.........786-1500 2.5
Float Height...........21mm
Carburetor mounting dimensions
Height, from bottom float bowl to top of cap...........116mm
Width, from intake to outlet.......................................80mm
Width..........................................................................82mm
Intake from air box outside diameter.......................43mm
cylinder head mounting side outside diameter.......35mm
Package Included:
1x Carburetor
About This Item:
Warranty: 5 Years
100% Brand New and High Quality.
Fast & Free Shipping From KY or CA
This is Aftermarket Replacement Item But Not OEM.
Please make sure the replacement part number matches the part you are replacing.
And please check our photos for details and make sure the part shown looks identical to your stock one.
This is a Soillar brand item. The logo in the pictures is unrelated to other brands and is for reference only.
Please confirm before purchase.
