Product Highlights & Solutions
Refresh Timing Components: Includes timing chains, tensioners, guide rails, phasers, and phaser adjusters.
Simplify Parts Sourcing: Supplied with solenoid valves, a crankshaft gear, gaskets, seals, and installation hardware.
OE-Style Fit: Precision-engineered for the listed Ford F-150 3.5L application.
Vehicle Fitment
Compatibility List
- For 2011–2012 Ford F-150 (3.5L)
Replaces OE / Part Numbers
BR3Z-6584-B, AT4Z-6M280-A, AT4Z-6M280-B, AT4Z-6306-A, BL3Z-6K255-A, BL3Z-6L266-A, JL3Z-6K297-A, AT4Z-6K297-B, AT4Z-6B274-A, AT4Z-6268-A, 7T4Z-8590-A, 7T4Z-8257-A, TA-357, W503297-S900, XW4Z-6700-AA, AT4Z-6K297-D, BL3Z-6D256-C, AA5Z-9439-A, AT4Z-6256-B, AT4Z-6C525-D, AT4Z-6268-C, AT4Z-6279-D, AT4Z-6279-E, BL3Z-6584-A, BL3Z-9E583-B, BR3Z-6020-A, BR3Z-8507-C, BR3Z-8527-A, F5RZ-6A340-B
Specifications
| Detail |
Specification |
| Condition |
New |
| Type |
Timing component and gasket set |
| Engine Application |
3.5L |
| Design |
OE-style fit and performance |
| Included Kit Reference |
BL3Z-6D256-C |
| Installation Instructions |
Not included |

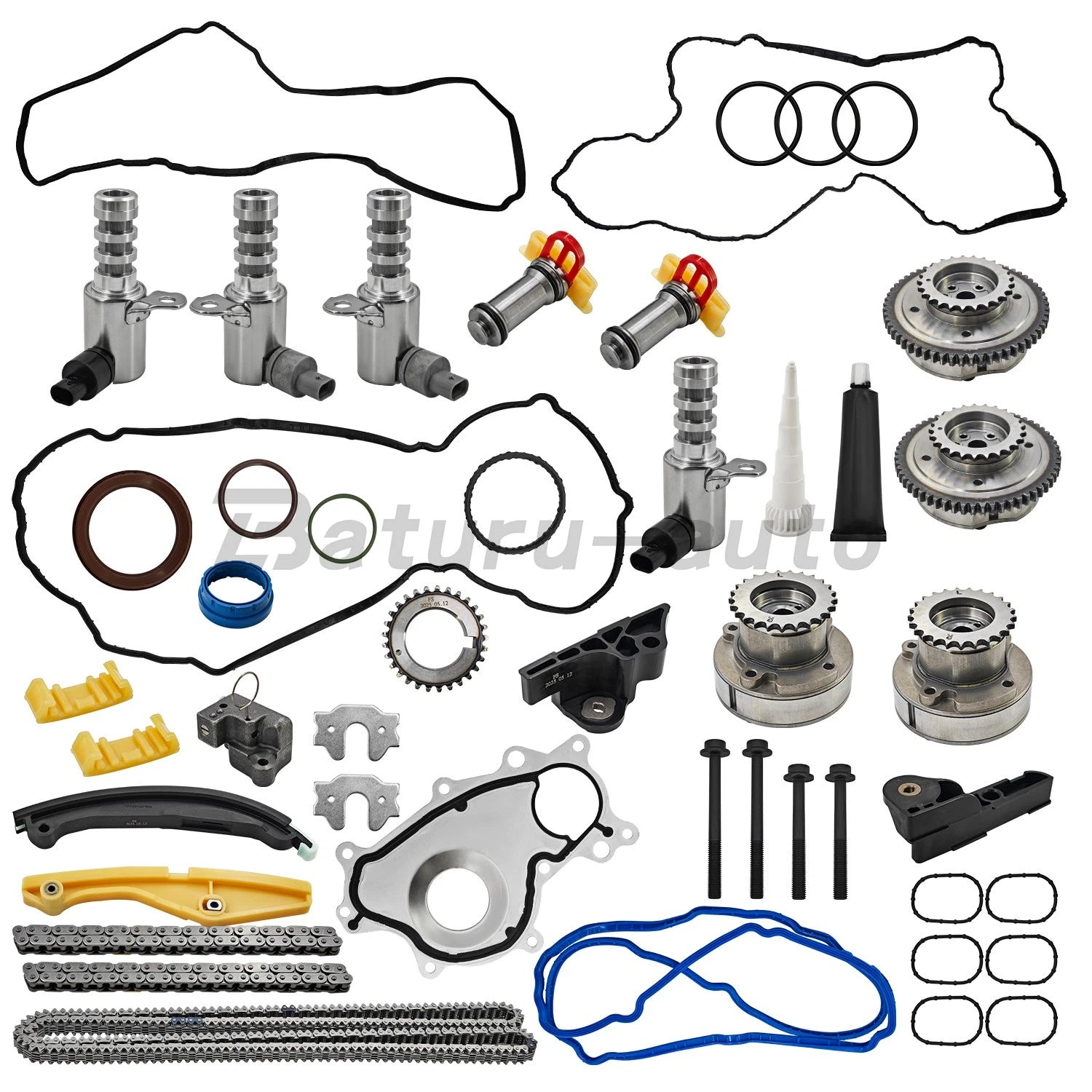

Package Includes
- Valve cover gasket — BR3Z-6584-B
- 2 solenoid valves — AT4Z-6M280-A
- 2 solenoid valves — AT4Z-6M280-B
- Crankshaft gear — AT4Z-6306-A
- Tensioner — BL3Z-6K255-A
- Tensioner — BL3Z-6L266-A
- Guide rail — JL3Z-6K297-A
- Guide rail — AT4Z-6K297-B
- Guide rail — AT4Z-6B274-A
- 2 timing chains — AT4Z-6268-A
- Thermostat housing gasket — 7T4Z-8590-A
- 2 coolant line O-rings — 7T4Z-8257-A
- Silicone — TA-357
- 2 fuel pump bolts — W503297-S900
- Front crankshaft seal — XW4Z-6700-AA
- 2 guide rails — AT4Z-6K297-D
BL3Z-6D256-C kit containing:
- Intake gaskets — AA5Z-9439-A
- 2 phasers — AT4Z-6256-B
- 2 phaser adjusters — AT4Z-6C525-D
- Timing chain — AT4Z-6268-C
- 2 phaser adjuster bolts — AT4Z-6279-D
- 2 phaser adjuster bolts — AT4Z-6279-E
- Valve cover gasket — BL3Z-6584-A
- Fuel pump gasket — BL3Z-9E583-B
- Crank seal — BR3Z-6020-A
- Water pump gasket — BR3Z-8507-C
- Water bypass gasket — BR3Z-8527-A
- Crank bolt — F5RZ-6A340-B
